- Wysoce wydajny system chłodzenia
- Do 1W mocy wyjściwej
- Moduł WiFi i Bluetooth
- Odświeżanie do 1000Hz

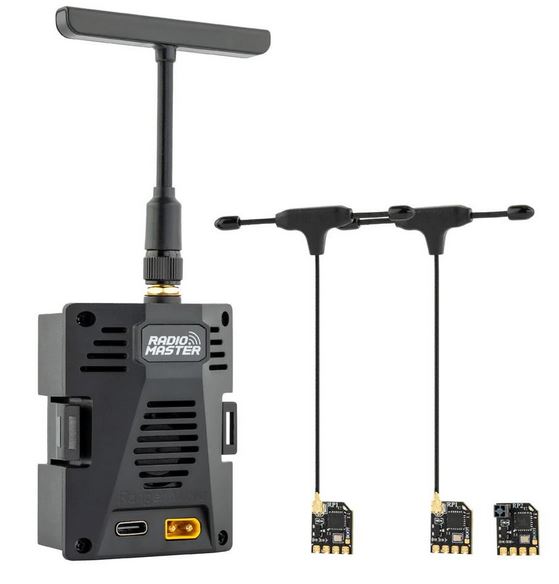

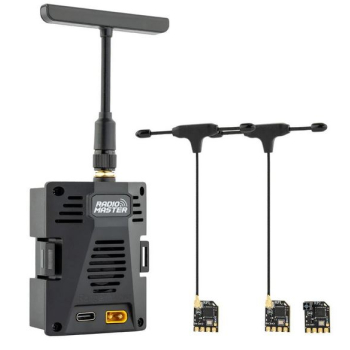

- Antena-T w zestawie
Specyfikacja:
Specyfikacja:

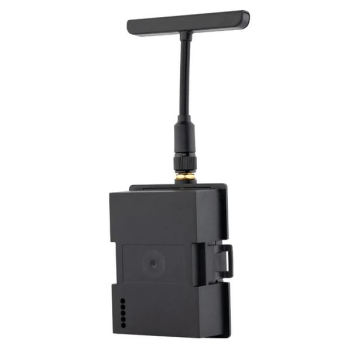

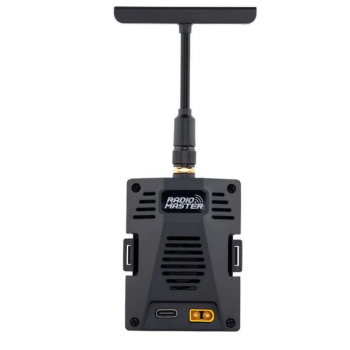

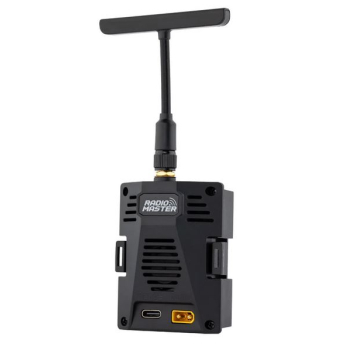

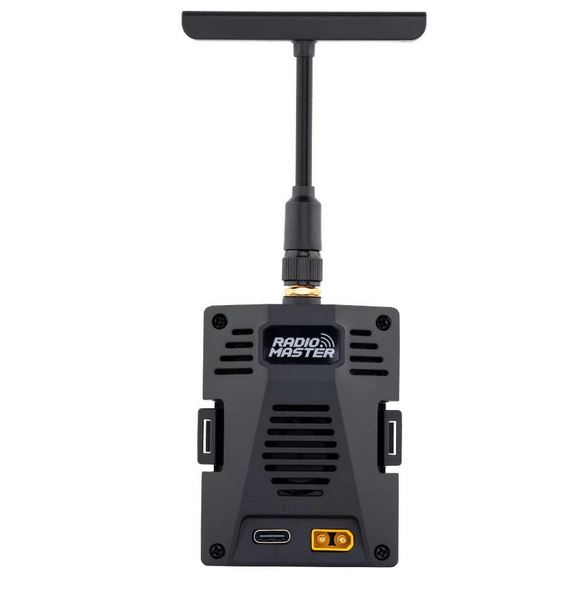

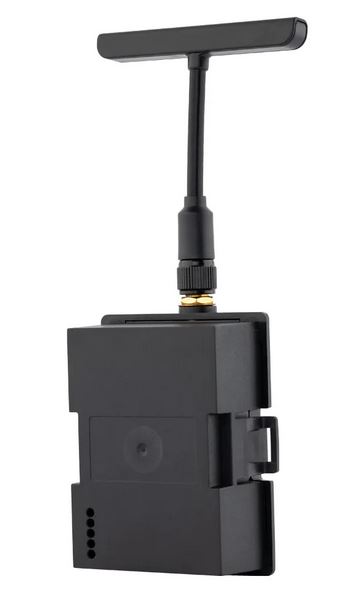

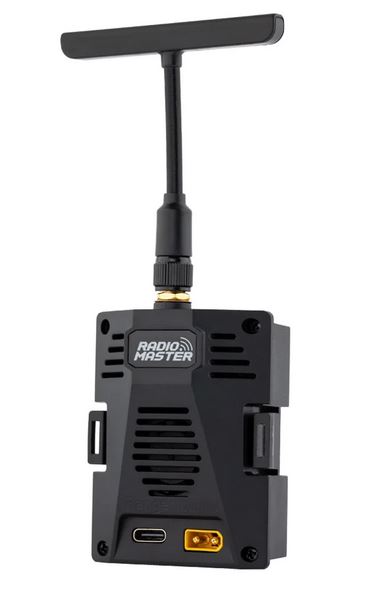

Nazwa - Ranger Micro Module
MCU: ESP32(main), ESP8285(aux,as ESP backpack)
RF chip: SX1281IMLTRT
Frequency Range: 2400 MHz - 2480 MHz
Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
Minimum receiver refresh rate: 25Hz
RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
Wifi Support: Yes
Bluetooth support: Yes
XT30 Power supply voltage: DC 6V - 16.8V
XT30 Power supply voltage: DC 6V - 16.8V
Weight: 50g (with antenna) / 40.5g (without antenna)

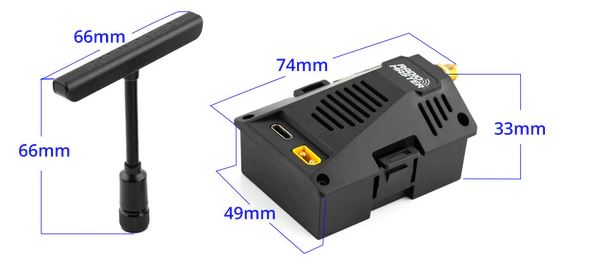

Dimension: 136*49*33mm (with T antenna) / 74*49*33mm (without antenna)
Dimension: 136*49*33mm (with T antenna) / 74*49*33mm (without antenna)
