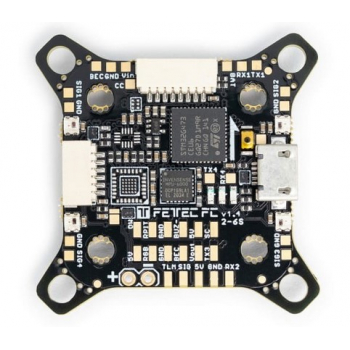

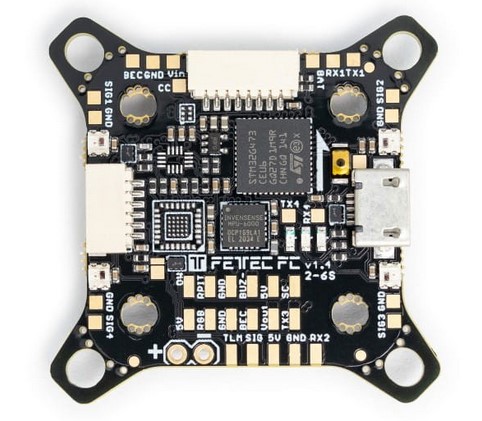

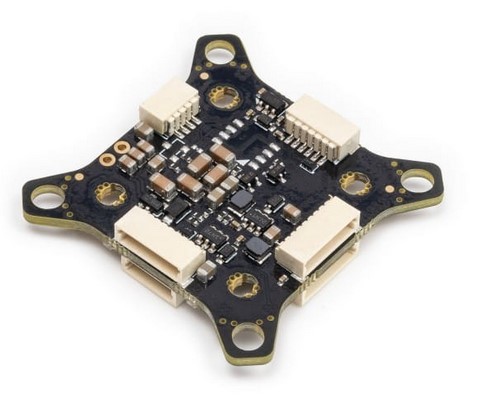

Kontroller lotu FC FETtec KISS FC G4-N

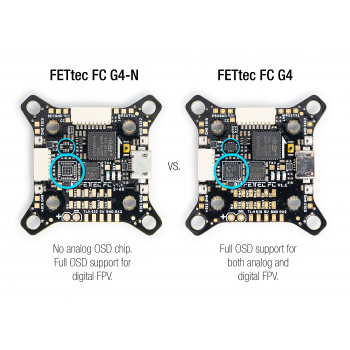

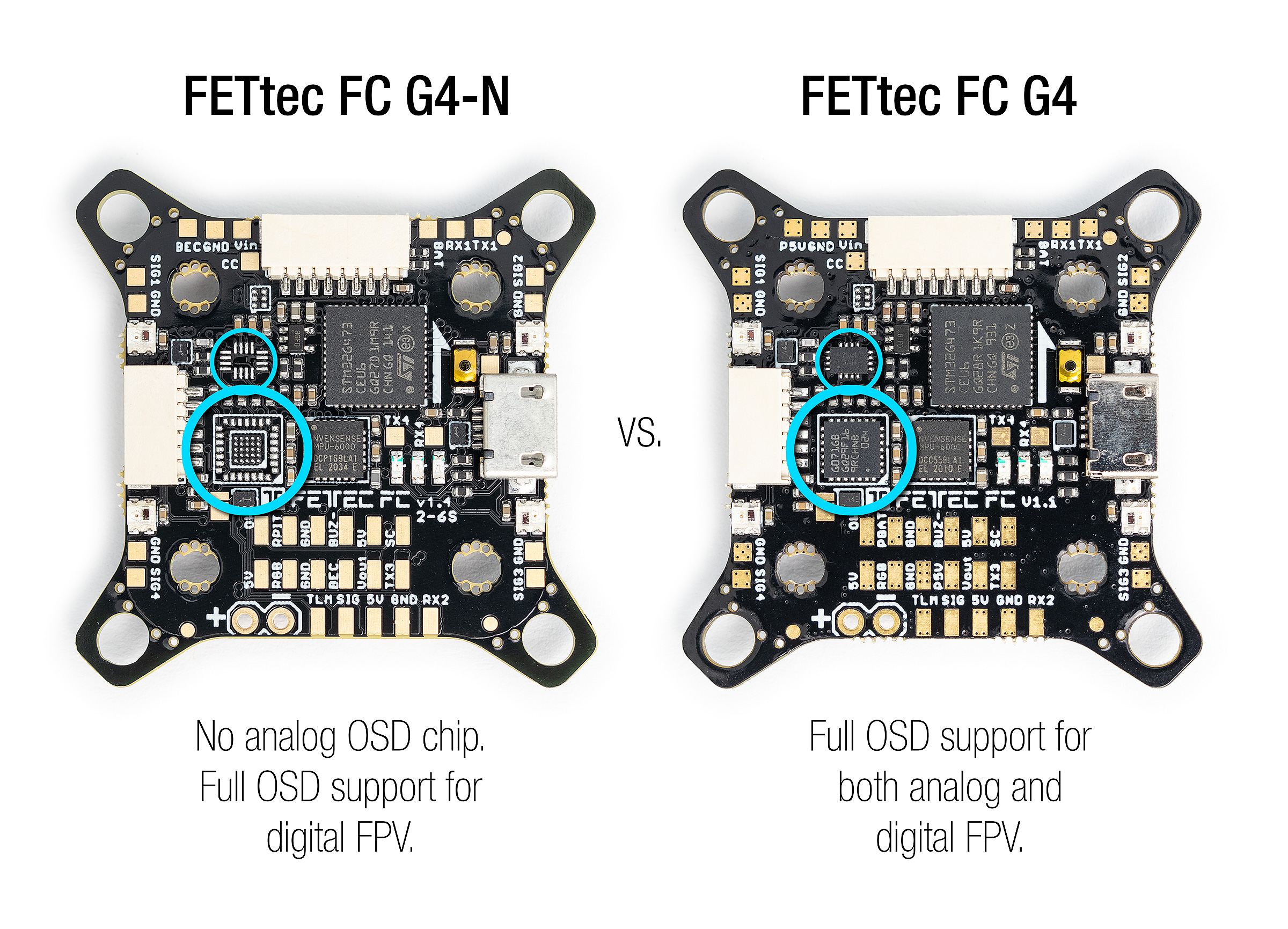

What does "N" version mean?

This product has no onboard analog OSD.

Except for the removed analog OSD, there are no restrictions and you can use the full potential of our fc as you are used to.
Use with other OSDs/ digital FPV systems is still possible as usual.

Features:

• Latest STM32G4 Processor

  • 170Mhz + Math accelerator

  • MPU6000

• Supply voltage 6-27V (2S-6S Lipo)

• 2x dedicated onboard BEC (max. 600mA each)

  • 5V BEC for RX

  • 5V/16V BEC for VTX (switchable and real Pit*)

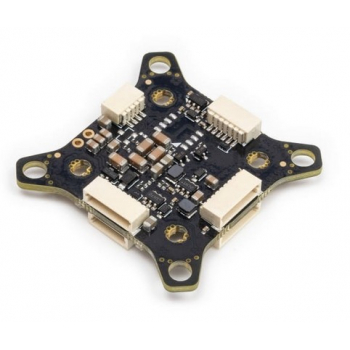

• 2x 8 pin connector for solder free ESC connection

  • Connector 1: ESC signal 1-4, telemetry, VCC, GND

  • Connector 2: ESC signal 5-8 (depending on UAV type 1-4), telemetry, VCC, GND

• 1x 8 pin connector for solder free VTX, cam connection and OSD or digital systems

  • real Pit* VCC, GND, Video in, Video out, BEC 5V/16V, VCS/TX3, RX3

• 2x 6 pin connectors for serials

  • RX1, TX1, 3.3V, VCC, 5V, GND

  • RX3, VCS/TX3, RGB LED, VCC, 5V, GND

• 1x 4 pin connector for receiver

  • Signal, TLM, 5V, GND

• 5 UART serials

  • UART 1 free

  • UART 2 used for Receiver

  • UART 3 free

  • UART 4 free

  • UART 5 used for ESCs / TLM / Onewire

• 4 ESC solder pads (Signal/GND) in each corner

• Buzzer pads

• 4 tiny RGB LEDs (selectable color)

• Supported ESC protocols

  • PWM, Oneshot125, Oneshot42, Dshot150/300/600/1200/2400, FETtec Onewire

• FETtec KISS firmware

• Connector type: JST-SH-1mm

*real Pit-Mode: A power supply pin which is remotely switchable

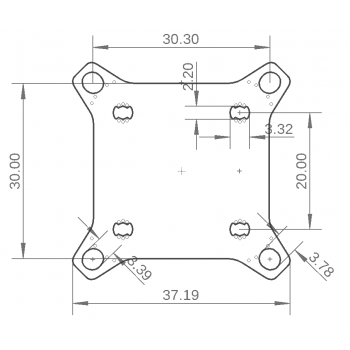

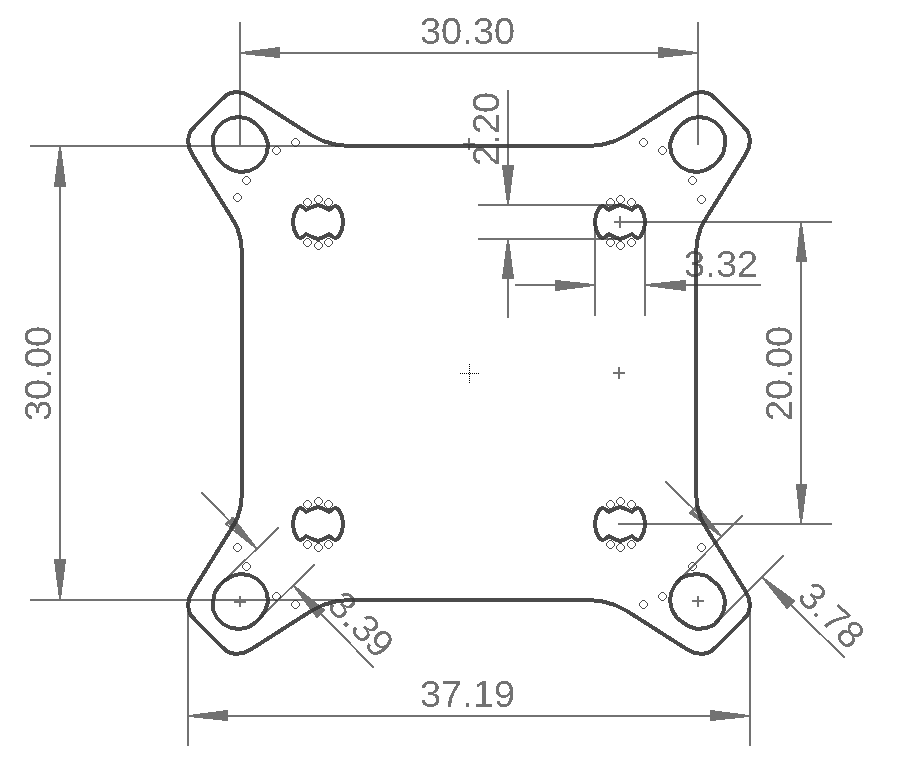

Dimensions:

• Maximum outside dimensions: 37,2 x 37,2mm, without outside tips 30 x 30mm

• Mounting hole arrangement:

  • 20 x 20mm with M2 mounting hole (expandable to M3)

  • 30 x 30mm with M3 mounting hole

  • 30 x 30mm mounting hole tips are removable to reduce overall FC size

• Overall height: 7,9mm

• Weight: 5,37g

Firmware:

• KISS Firmware

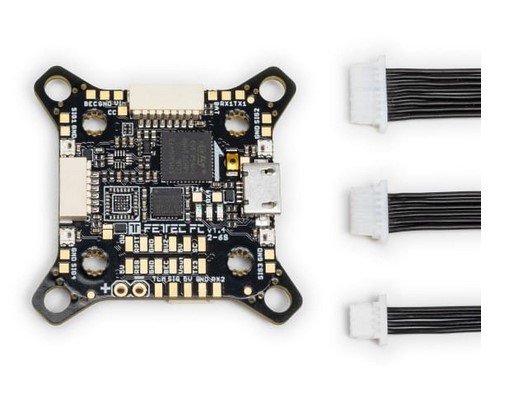

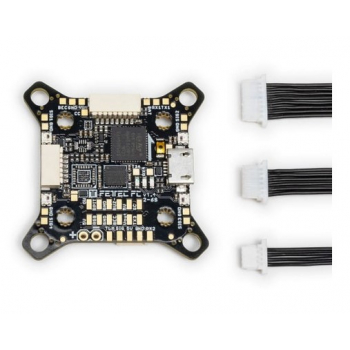

Scope of delivery:

• 1x FETtec FC G4 N
• 1x 8 pin cable (open on one side)
• 1x 6 pin cable (open on one side)
• 1x 4 pin calbe (open on one side)
