Features

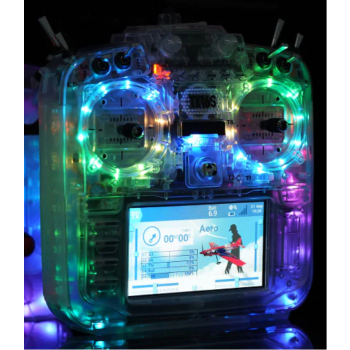

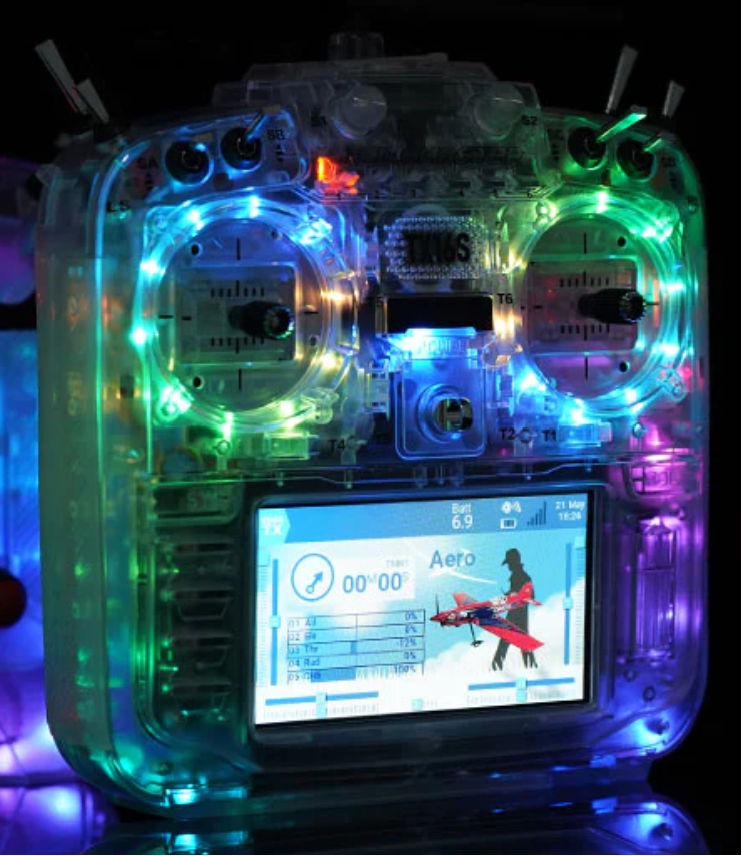

• Clear Crystal Case and surrounding RGB lights design, experience the Heartbeat of Technology
• CNC metal folding handle, easy to carry and storage
• Updated sticky360 gimbal stick ends to bring you a comfortable, zero-slip experience
• Improved internal circuitry and optimized power supply
• New charge circuitry with integrated reverse-polarity protection
• Optimized charge IC now allows up to 2.2A internal USB-C charge current
• Rear-mounted audio jack provided headphone output
• V4.0 Gimbal improved centering and temperature stability
• Optional high/low rear grips are included for improved ergonomics
• Improved S1/S2 knobs with clear centre-detents
• Improved LS/RS Sliders with smoother feel and better centre-detents
• Redesigned battery cover for improved battery access
• Retooled body shell with improved fit and finish
• Trainer socket changed to standard TRS 3.5mm socket
• Rear DIY Socket added for personalized mods
• Improved internal plastics for better longevity

Specification

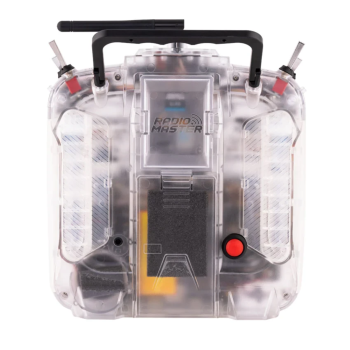

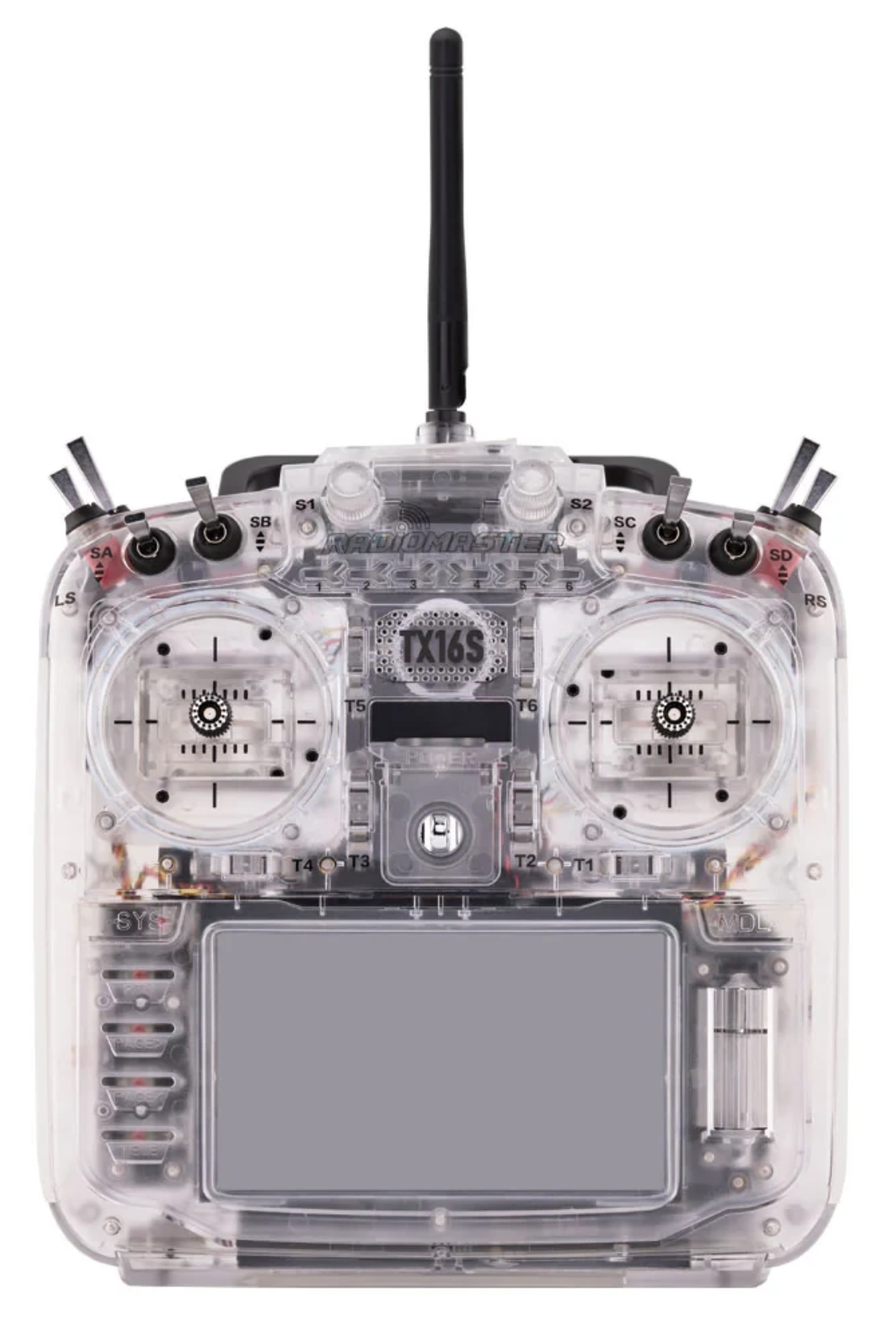

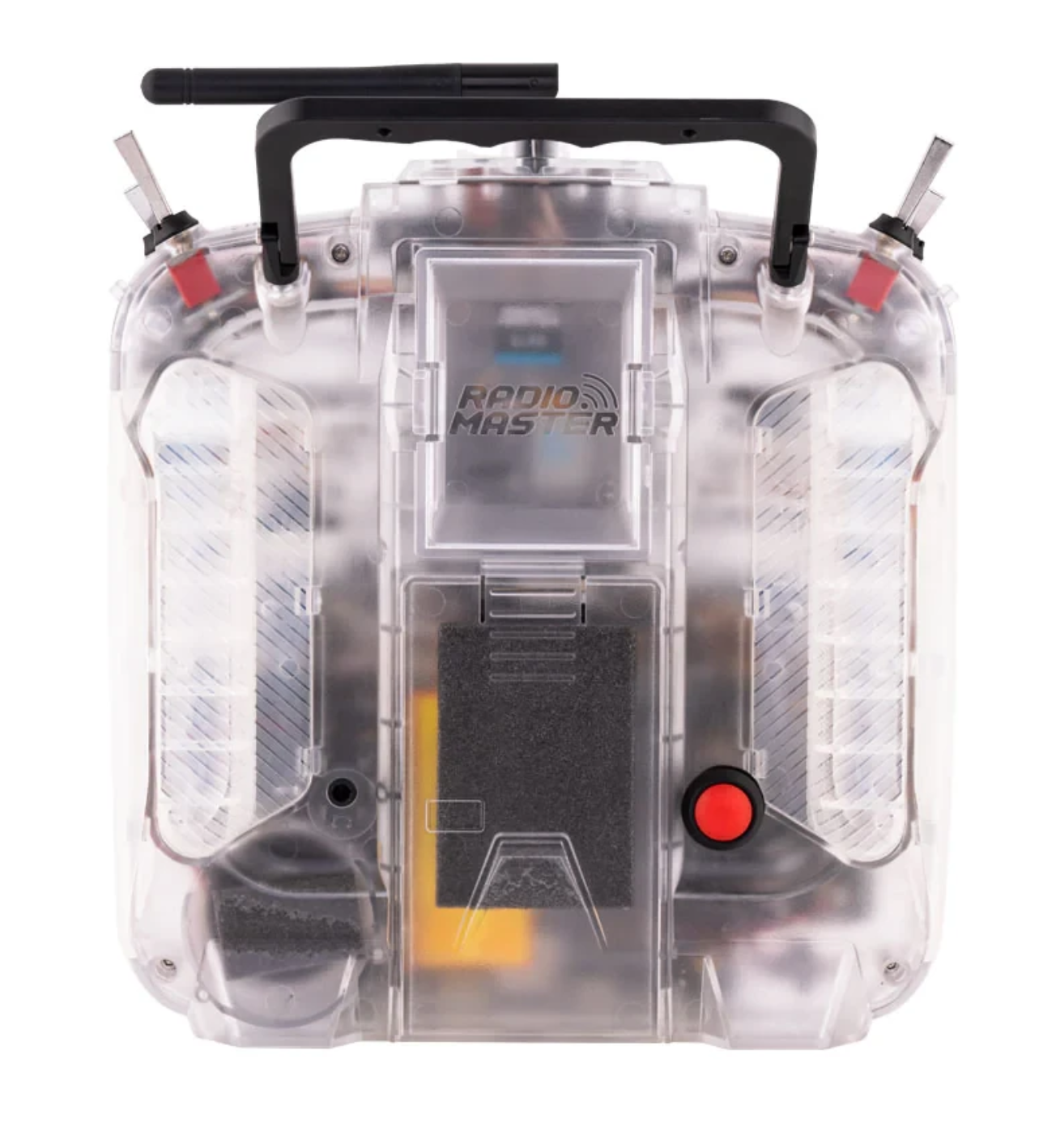

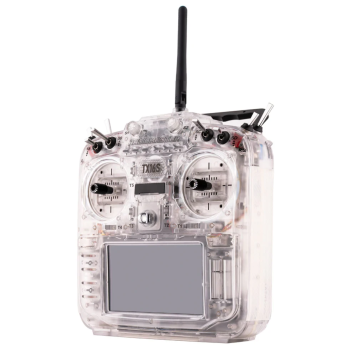

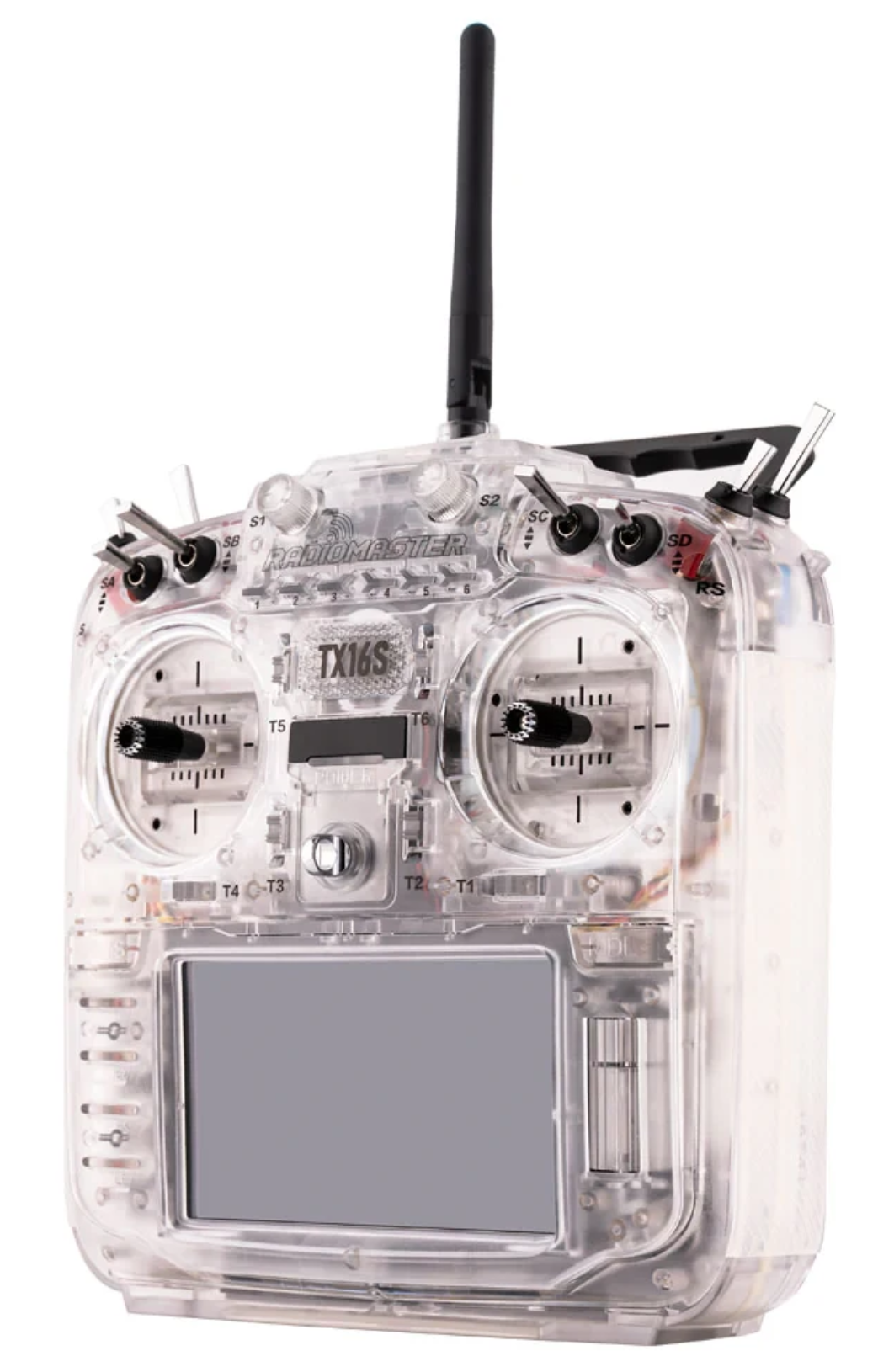

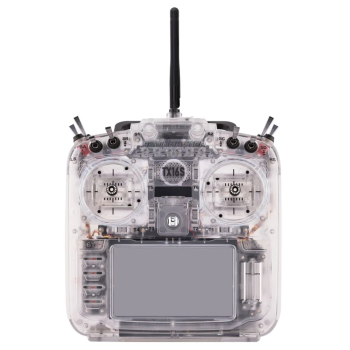

• Item: TX16S MKII Radio Transparent Version
• Size: 287x129x184mm
• Weight: 750g (without battery)
• Transmission frequency: 2.400GHz-2.480GHz
• Transmitter module: Internal ELRS (SX1280)
• SD card: Newly updated 512MB card as standard
• Working current: 400mA
• Working voltage: 6.6-8.4v DC
• Radio firmware: EdgeTX
• Module Firmware: ExpressLRS (ELRS)
• Channels: Up to 16 channels (depending on the receiver)
• Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272
• Gimbal: V4.0 Hall sensor
• Module Bay: JR compatible module bay
• Upgrade method: Supports USB-C online / SD card offline upgrade

Standard FCC Version

• ELRS (FCC) is pre-installed with ExpressLRS ISM FW (Max power is hardware dependant)

EU LBT Version

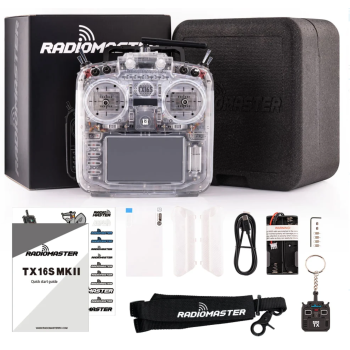

Package Includes

• 1 * TX16S MKII Radio Transparent Version
• 1 * 18650 Tray
• 1 * USB-C Cable
• 1 * Screen Protector
• 4 * Low Tension Springs
• 1 * 1.5mm Allen Key
• 1 pair of flat grips
• 1 pair of raised grips (installed on radio by default)
• 1 * TX16S Key Chain
• 1 * RadioMaster Neck Strap
• 1 * Stickers
• 1 * Manual
